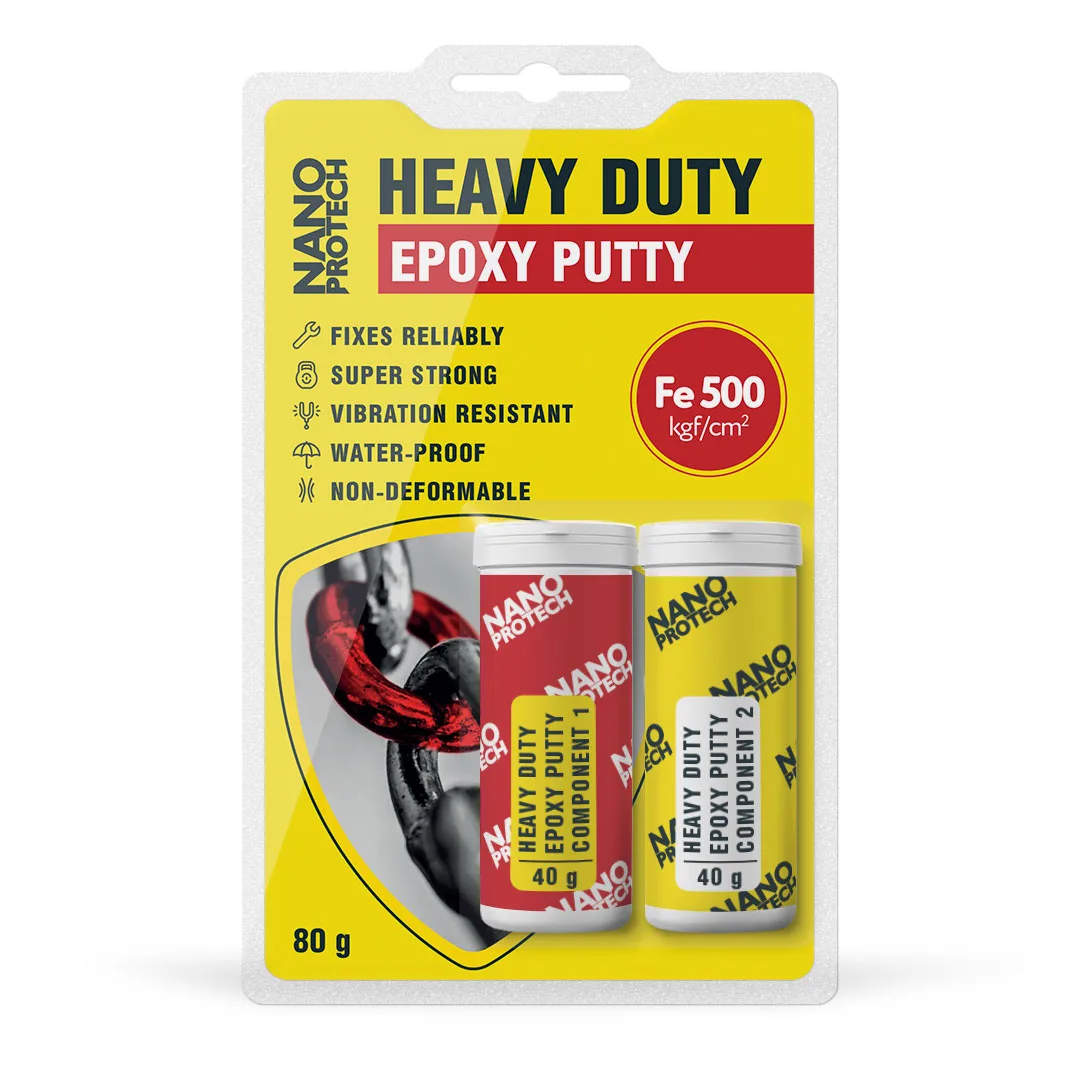

Heavy duty epoxy putty, 80 g
NANOPROTECH Heavy duty epoxy putty is a two-component epoxy adhesive for repairs and very strong bonds between parts made of ferrous and non-ferrous metals, plastics, wood, glass, ceramics, faience, stone, marble, concrete, rubber and leather. The components are mixed 1:1 by volume; at +20 °C the mix stays workable for 3–4 hours, cures in 5–6 hours and reaches maximum strength after 24 hours. It resists vibration, water and heavy mechanical and chemical loads, and lets you do without nails, screws and wall plugs.
The 80 g pack is intended for repairs and fixing jobs indoors and outdoors; store it in a dark place at no more than +25 °C.
Typical repairs and fixing jobs
- Metal and plastic car parts.
- Fixing without nails, screws or wall plugs, indoors and outdoors.

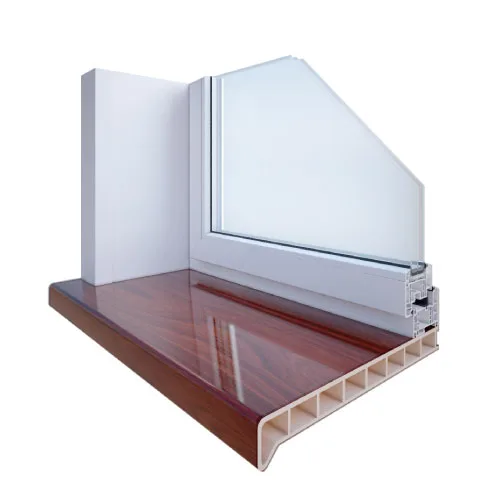

- Window sills and frames.
- Plumbing parts.
- Stone, marble, concrete, ceramic and faience items.
- Rubber and leather items.
Properties and curing time
- A 1:1 epoxy: the two components are mixed in equal parts by volume until the mass is uniform in colour.
- Pot life of the mix: 3–4 hours at +20 °C.
- Cures in 5–6 hours at +20 °C; keep the parts fixed together during this time.
- Reaches maximum strength after 24 hours at +20 °C, after which the joint can be loaded and machined.
- Resists vibration, water and heavy mechanical and chemical loads; does not deform.
- Repaired items can be used at temperatures from −60 °C to +150 °C.
Materials it bonds
Ferrous and non-ferrous metals, plastics, wood, glass, ceramics, faience, stone, marble, concrete, rubber and leather, for indoor and outdoor work. It is a metal-filled epoxy: alongside the epoxy resin and amido-amine hardener, it contains iron powder and aluminium powder.
Key specifications
| Type | two-component epoxy adhesive filled with iron and aluminium powder |
|---|---|
| Mixing ratio | 1:1 by volume |
| Pot life | 3–4 hours at +20 °C |
| Curing time | 5–6 hours at +20 °C (parts must be fixed) |
| Maximum strength | after 24 hours at +20 °C |
| Bond strength (Fe) | 500 kgf/cm² |
| Operating temperature | −60 °C to +150 °C |
| Shelf life | 24 months |
| Sizes | 80 g |
| Item number | NPGKS0014 |
Questions and answers
How long does the epoxy take to cure?
5–6 hours at +20 °C, during which the parts must stay fixed together. The bond reaches maximum strength after 24 hours and can then be loaded and machined.
How do I mix the two components?
In equal parts by volume. Put both components on a dry, clean plate and mix until the mass is uniform in colour. The mix stays workable for 3–4 hours at +20 °C.
How should I prepare the surfaces?
Clean off dirt and rust, always rough up the surfaces with coarse sandpaper, degrease with acetone or white spirit and let them air-dry for 15–20 minutes. Apply the mix to both surfaces.
Can it replace screws and wall plugs?
Yes. The adhesive lets you do without nails, screws and wall plugs in indoor and outdoor work. Keep the parts fixed for the 5–6 hours of curing and load the joint after 24 hours.
Does this epoxy glue bond concrete and stone?
Yes. It bonds stone, marble, concrete, ceramics and faience as well as metals, plastics, wood, glass, rubber and leather.
Used together with
- Super glue colourless — elastic two-component epoxy for shoes, leather, rubber and PVC
- Metal epoxy putty — for sealing leaks and rebuilding fragments of metal parts
- Multipurpose epoxy putty — for cracks and holes in metal, plastic and ceramic items
Areas of application
Recommendation for use
1. Clean dirt and rust off the surfaces to be bonded, be sure to sand them with coarse sandpaper, degrease (with acetone, white spirit, etc.) and leave to air-dry for 15–20 minutes.
2. Place equal volumes of both components on a dry, clean plate and mix thoroughly until the mass is uniform in colour and consistency.
3. Apply the mixture to both surfaces to be bonded.
4. Pot life: 3–4 hours at +20 °C.
5. Curing time: 5–6 hours at +20 °C. Keep the parts fixed together during this time.
6. Maximum strength is reached after 24 hours at +20 °C; after that, the joint can be loaded and machined.
Operating temperature of the repaired item: −60 °C to +150 °C.
Composition
Epoxy-diane resin up to 15%, amidoamine hardener up to 10%, plasticiser up to 5%, curing accelerator up to 1%, iron powder up to 45%, kaolin up to 20%, aluminium powder up to 3%.
Characteristics
| Packaging | Item number | Barcode | Pcs per box | Gross box weight, kg |
|---|---|---|---|---|
| 80 g | NPGKS0014 | 4610046770155 | 24 | 2.93 |
- TU:
- 20.52.10-014-09201409-2019
Service and shelf life
Shelf life: 24 months. Store in a dark place at no higher than +25 °C.
Safety measures
Avoid contact of the components with eyes and skin. Wear protective gloves during work. After work, wash your hands with warm soapy water. Keep out of the reach of children. Dispose of as household waste.
